Eclipse
The integrated instruments "ECLIPSE NG" features a very sunlight readable display that shows the engine and flight data organized in one or more pages. Many features make ECLIPSE NG unique in the avionics market, such as the intuitive graphical data representation, the vocal alarms, the 3 color cameras video inputs and the datalogger with integrated graphical viewer.
Two different versions meet the most demanding requirements, allowing you to configure your instrument panel to the best quality price ratio available today.

MASTER INSTRUMENT

Air and attidude data
   - Attitude indicator
   - Slip indicator
   - Compass
   - Indicated Air Speed
   - Altimeter
   - Vertical speed indicator
   - GPS ground speed
  - G-Meter

Engine
   - RPM
   - MAP
   - Oil pressure
   - Oil temperature
   - Up to 6 EGT
   - Up to 6 CHT
   - Coolant (For coolant temperature reading)
   - OAT
   - CAT
   - Fuel Pressure
   - Fuel Computer with Instantaneous Fuel Consumption, Endurance, Fuel Remaining, Fuel Used Since Last Flight, Range and Reserve to Next Point (if connected to a GPS)
   - Up to 3 fuel level gauges with calibration
   - Supply Voltage
   - Current
   - Hour meter with separate counters for each speed (green arc, yellow arc, red arc)
   - Local Time from GPS
   - Automatic Flight Timer

Moving parts indication
   - Trim position (Elevator)
   - Flap position
   - Gear up/down

2 axis autopilot
   - Maintain set heading and altitude
   - GPS navigation (from wire reading RMB)
   - WIFI navigation (receiving a flight plan from App, will require Flybox Connect kit)

Others
  - Datalogger with 1 second sampling over 100h
  - Peak memory for each engine parameter reading
  - 3 Camera inputs
  - Voice alarm output
  - Digital alarm outputs (to connect LED or Buzzer)
  - Customisable thresholds, units and alarms for each instrument displayed
  - 2 CAN BUS
  - 2 RS232 serial port
  - 1 USB port
  - GPS data
  - Altiture encoder for serial Transponder

Possibility of connecting optional second screen, (Eclipse NG MFD)

SLAVE INSTRUMENT

Eclipse NG MFD is the slave instrument that allows the viewing of all the available data from the main ECLIPSE NG master unit. It is connected to the main instrument with only 2 wires. The MFD can be used only in two screen glass cockpit configuration.

Eclipse

$3,004.50Price

  • 1- IFIS page (Integrated Flight Information System)

    The IFIS page features artificial horizon and flight data on the left side, while on the right side you have a shot on the the essential engine parameters.



    2- PFD page (Primary Flight Display)

    The PFD page has a full page attitude indicator that enhances all the flight data in a single screen.

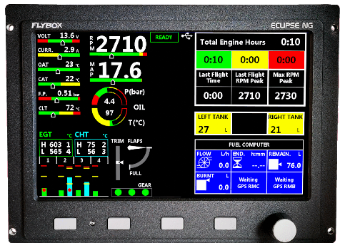

    3- EIS page (Engine information System)

    The Eis page is composed by all the engine parameters, the hour meters section and the fuel management section.
